In large-scale data ingestion systems, small architecture choices can have dramatic performance implications.
\ During my time at AWS CloudWatch, we were in the midst of a migration from our legacy metric stack to a spanky new one. I was the on call engineer as our alarms blared: end-to-end latency spikes had breached a critical threshold. A quick partitioning tweak later, those noise-making spikes vanished and throughput climbed 30% on the same hardware. In this deep-dive, you’ll see exactly how I diagnosed a flawed “uniform message” assumption and turned it into high-volume reliability.
The System ArchitectureThe data pipeline processed messages from a number of queues, each of which had its own priority setting.

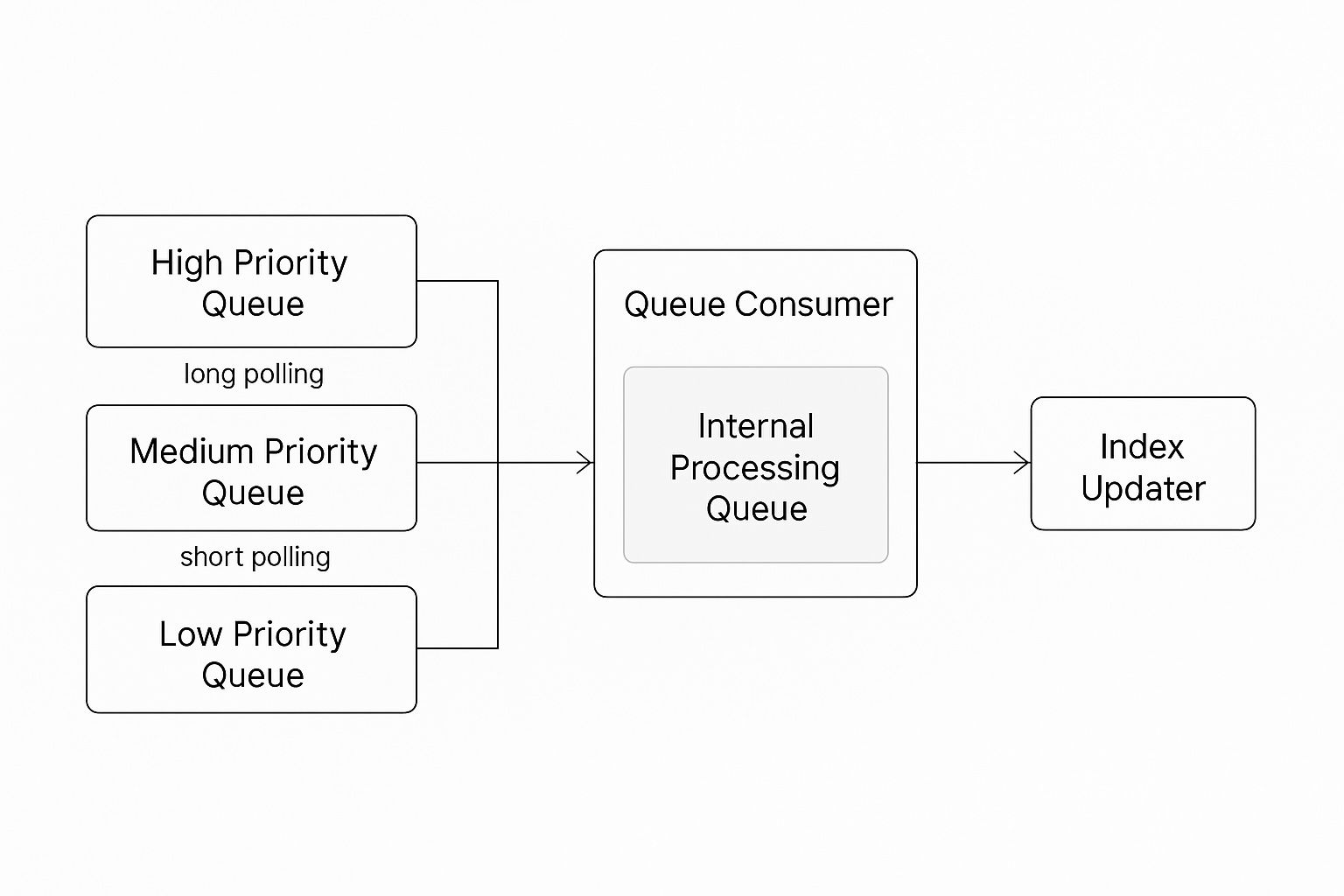

\ The architecture looked like below:
\ The distributed queue consumer worked with a simple algorithm.
\
Poll through queues in listed priority order and read available messages.
Add messages to an internal processing queue till the buffer reaches maximum capacity.
Flush the buffer.
\
Long polling was employed for higher priority queues to ensure more messages were picked up to minimize end-end latency, whereas the lower priority queues were polled for a shorter period of time in order to prevent priority inversion. This was crucial for maintaining SLA of the broader data pipeline.
Message Processing FlowMessages in this system usually fit into two categories of operations:
\ These messages would be read by the queue consumer, processed, and then sent to downstream systems for indexing with the results. Simple and clear-cut—or so it appeared.

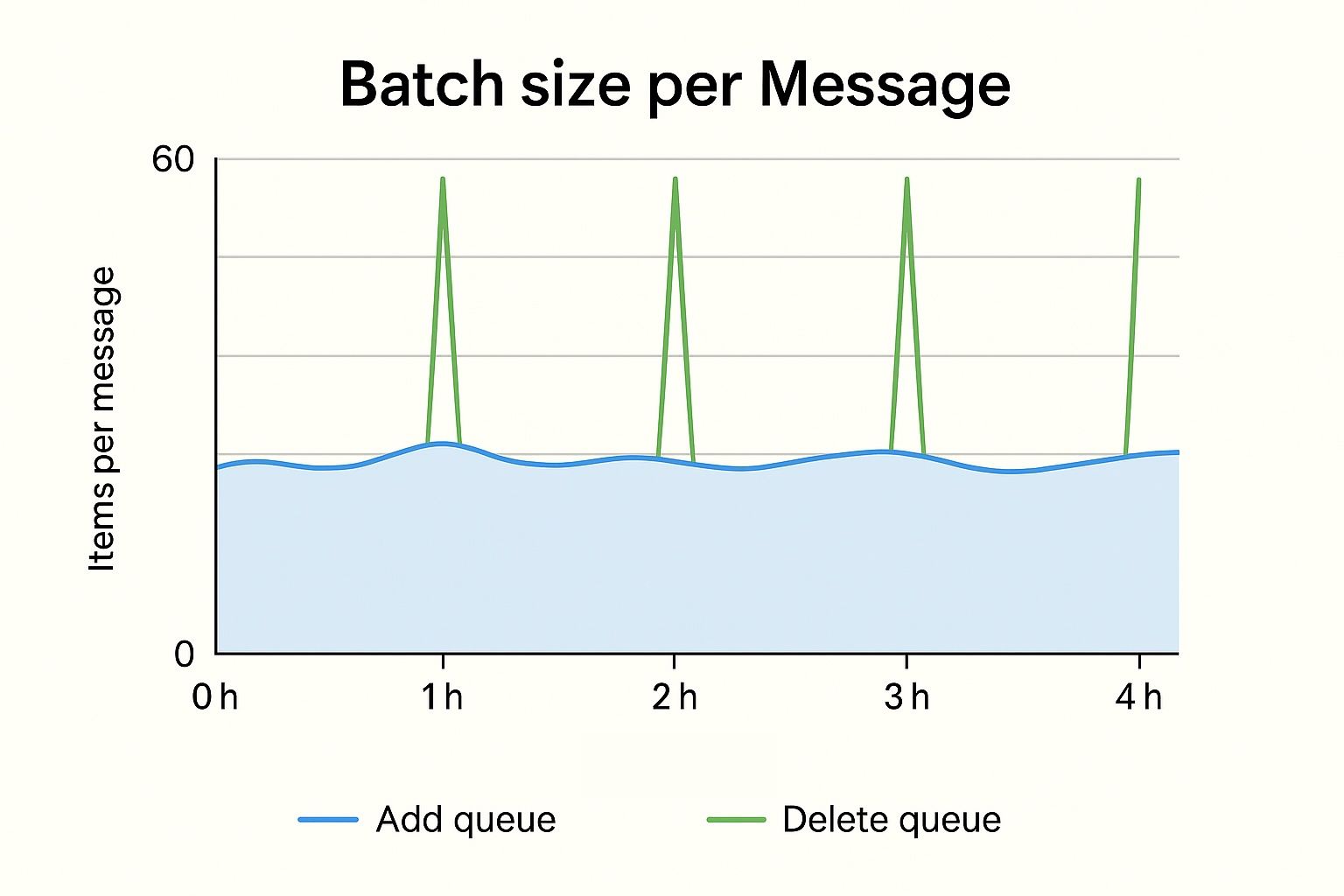

Problem: Message Size VarianceEverything functioned as anticipated during early production deployment and initial testing. As scale grew, though, we started to see occasional end-to-end latency spikes, especially at the top of every hour when some message types would flood. Extensive research revealed a basic assumption ingrained in our design: we had assumed messages across several queues would be approximately same in size. Actually, delete messages were far bigger than add ones.
\
\ This size difference set off a chain reaction:
Processing larger messages (deletes) took more time.
Many large delete messages arriving simultaneously would mean that the buffer filled with more deletes instantly before cycling back to a higher priority queue.
This resulted in periodic latency spikes in "lumpy" processing patterns.
\
Most troubling was that these processing imbalances were really countering our priority queue consumer design. During peak times, large, low-priority messages were practically crowding out smaller, higher-priority ones.
Root Cause: Mental Model MismatchThe queue consumer filled its buffer under the assumption that all messages had a uniform distribution in the operations. In reality, the number of operations contained within each message varied dramatically - some delete messages contained 50+ operations, while add messages typically contained 1-5 operations.
\ This mismatch between our mental model (messages as atomic units of work) and reality (messages as variable-sized containers of work) was the manifestation of the performance bottleneck.
Solution: Message Partitioning and NormalizationThe analysis of message size distributions indicated that normalization is necessary to ensure uniform processing features regardless of the message arrival rate.
\ The next steps were clear:

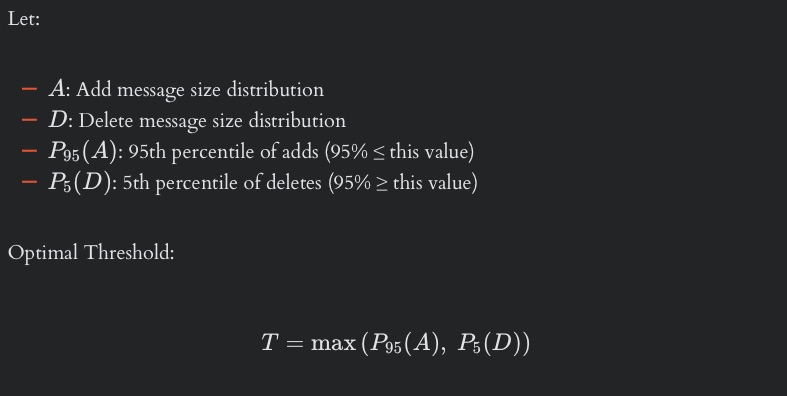

However, the core challenge was selecting a threshold such that below conditions were satisfied.
\ Enter, statistical analysis!
\
\ By implementing this partitioning at the layer above the actual queue consumer, I ensured that the priority queue mechanism itself didn't need to be modified, maintaining separation of concerns in the architecture.
Results: Dramatic Performance ImprovementThe impact of this seemingly simple change was profound.
\ After implementing message partitioning:
Processing became more consistent across all message types.
The hourly latency spikes disappeared entirely.
System throughput improved by approximately 30%.
\
Most importantly, batches sent to downstream systems now contained a more balanced mix of operations, even during peak periods. The system maintained its priority guarantees while eliminating the processing bottlenecks caused by message size variance.
\ Anecdotally, delete messages were now split into 3+ smaller messages, while add messages were rarely split. This normalization of message sizes ensured that the queue consumer was working with much more uniform units of work.
Broader Applications for Large-Scale Ingestion SystemsWhile this specific solution addressed a particular issue in a search indexing system, the principles apply broadly to large-scale ingestion systems:
\
To even have data to come up with above hypothesis, I recommend tracking these key metrics:
\ With these metrics in place, you can identify size-related bottlenecks and determine appropriate thresholds for message partitioning.
ConclusionBuilding high-performance, large-scale ingestion systems requires moving beyond textbook approaches and adapting to real-world complexities. The message partitioning solution I've described exemplifies how seemingly small optimizations can have outsized impacts on system performance.
\ What makes this approach particularly powerful is its simplicity and broad applicability. You don't need complex algorithms or expensive resources to implement message partitioning-just a clear understanding of your workload characteristics and a willingness to challenge assumptions.
\ If you're facing similar challenges with uneven processing in your high-volume queue systems, I encourage you to consider
whether message partitioning might be the right solution for you.
